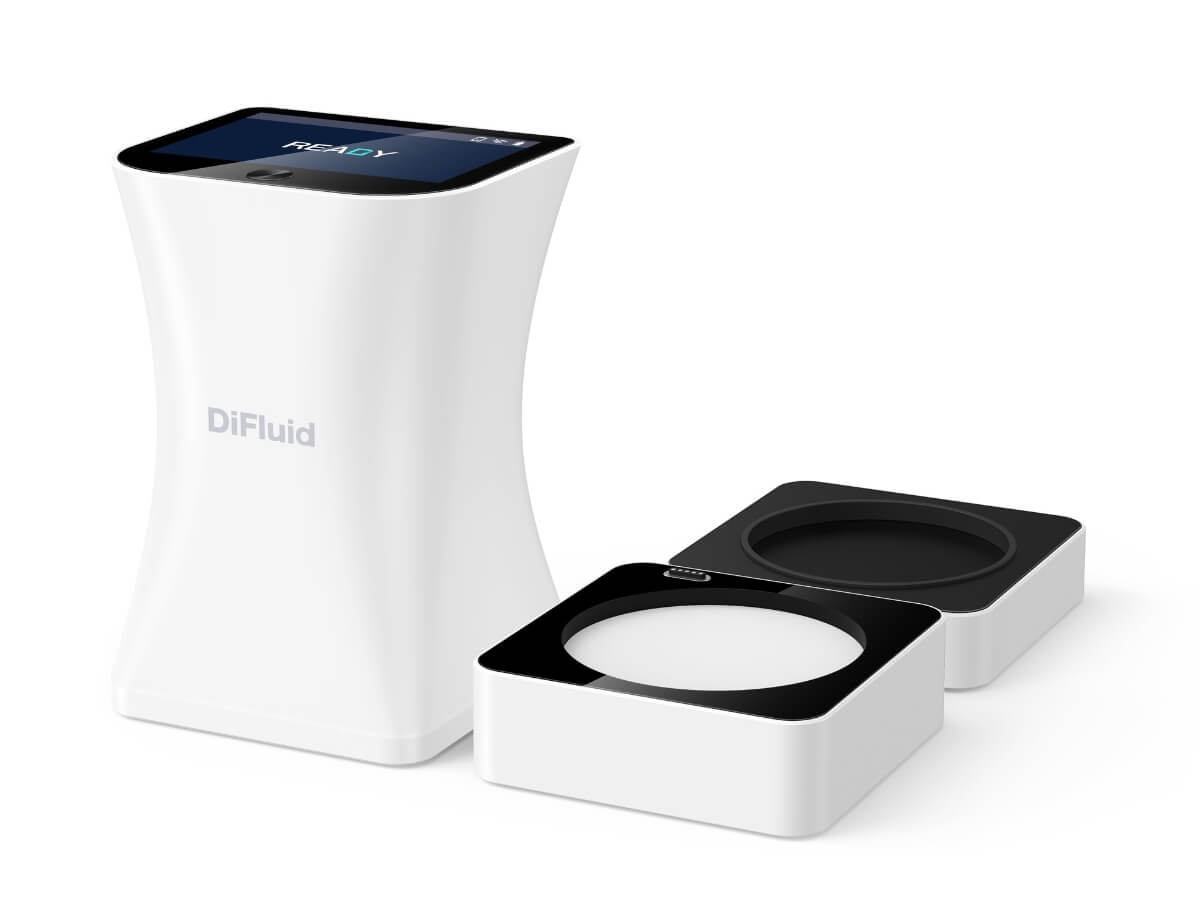

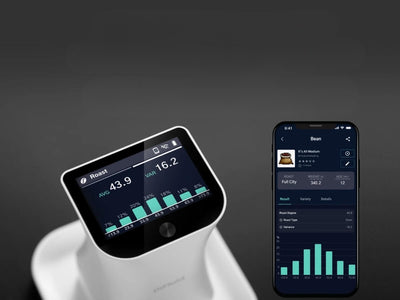

This device integrates high-resolution 2D near-infrared imaging to quantify roast degree and grind distribution. Roast analysis reports distribution percentages across a 0–150 Agtron scale with ±0.1 resolution for precise profiling. Particle-size analysis covers 100–2500 µm with 1 µm resolution for detailed grind distribution mapping. A smart vibration system disperses particles consistently to improve measurement repeatability. Automatic temperature sensing and compensation eliminate preheating and stabilise readings across environments. Multi-band data fusion and multi-sample statistics enable robust comparisons between roast batches and grinders. The unit uses a 2.8-inch high-definition touchscreen for immediate visualisation of roast and grind data. Fast detection and intelligent consistency judgement reduce the time from sampling to actionable results. Dual-chip architecture accelerates processing for simultaneous image capture and analysis. Battery operation with fast charging supports portable use in roaster labs and quality-control stations. Deep integration with the companion app and brew control system allows recording, tracking and exporting of analytical sessions. Included accessories cover both roast and particle workflows to simplify sampling and calibration. The package contains a particle analysis tray, roast analysis tray, tray holder, calibration plate and factory test report. Additional inclusions are a velvet storage bag, coffee beans and ground spoons, brush, scraper, toolbox and USB-C cable. The compact main unit measures 7.9 cm by 7.2 cm by 10.0 cm for convenient bench placement or mobile inspection. A calibrated workflow produces percentage distributions rather than single averaged roast values for clearer decision-making. Operators can compare multi-sample statistics to monitor roast consistency and grinder performance over time. The system supports rapid quality checks during production, cupping and grinder setup procedures. Detailed visualised outputs make it easier to communicate roast profiles and grind distributions across teams. A one-year limited manufacturer's warranty covers the device for standard manufacturing defects.

Imaging 2D near-infrared imaging for roast and particle visualisation
Roast degree range 0–150 Agtron; resolution ±0.1 Agtron
Particle size range 100–2500 µm; resolution 1 µm
Vibration system Smart vibration device for consistent particle dispersion

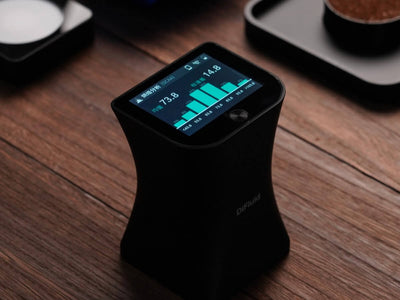

Display 2.8-inch high-definition touchscreen
Dimensions (main unit) 7.9 cm × 7.2 cm × 10.0 cm (L × W × H)
Power & charging Rechargeable battery with fast charging via USB-C

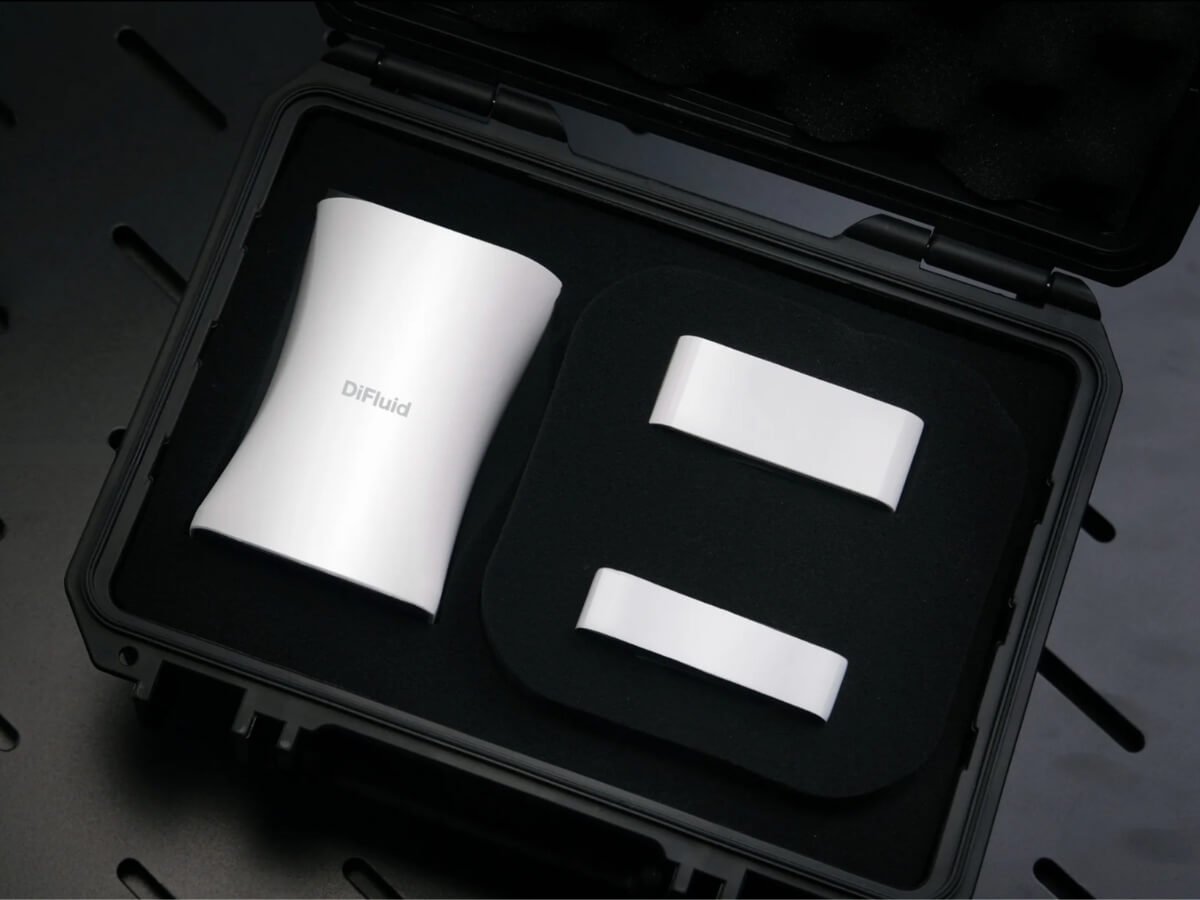

Included accessories Particle analysis tray; roast analysis tray; tray holder; calibration plate; velvet bag; coffee bean and ground spoons; brush; scraper; toolbox; USB-C cable; factory test report
